Automatic Transmission Extension Housing Seal - GMC C1500 1979-1990, K2500 1979-1990 9613S

Automatic Transmission Extension Housing Seal - GMC C1500 1979-1990, K2500 1979-1990 9613S

£1.10 GBP
£1.10 GBP
Sale Sold out
Tax included.
We have 8 in stock

Part Number + Internal Code

9613S

078 05 000

Specification

Colour

Material

Fitment

Condition

Manufacturer Type

Manufacturers Site (links off site):

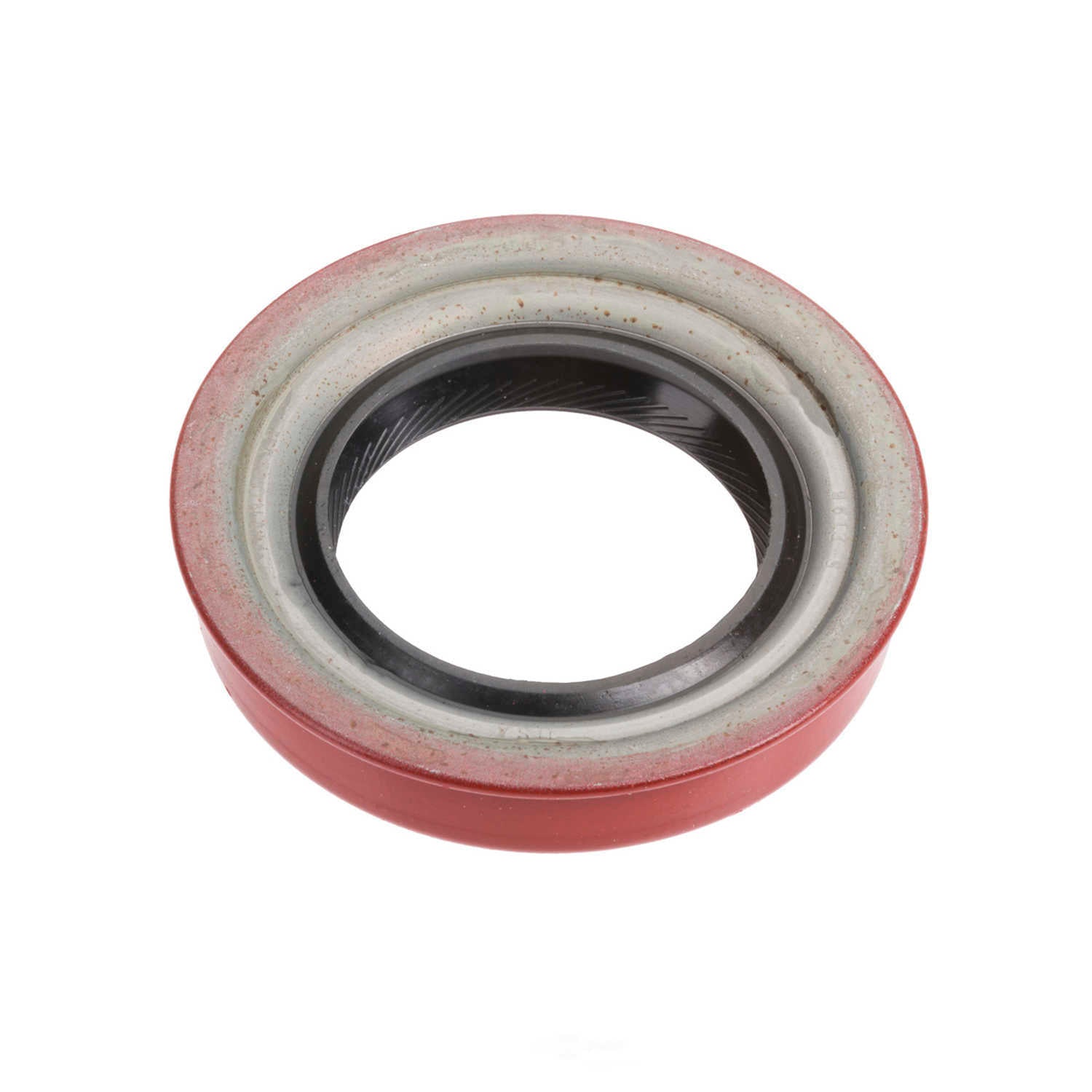

Automatic Transmission Extension Housing Seal - 9613S

Features & Benefits:

  • Design type: spring loaded; multi-lip
  • Temperature range: -40°F to 225°F / -40°C to 107°C
  • Good low temperature capability
  • Low swell in hydrocarbon fluids
  • Delivers quality and reliable performance for every type of repair

Common Applications Include:

Buick - 1961-1992

Cadillac - DeVille 1979-1984, Fleetwood 1978-1986, Seville 1978-1979

Chevrolet - Astro 1985-1990, C10 1975-1986, C1500 1988-1990, C20 1975-1986, C2500 1988-1990, Camaro 1967-1992, Caprice 1966-1992, Chevelle 1964-1973, Corvette 1955-1992, El Camino 1959-1987, G10 1975-1990, G10 Van 1964-1974, G20 1975-1990, G20 Van 1967-1974, G30 1975-1990, G30 Van 1970-1974, K10 1975-1986, K10 Pickup 1960-1974, K10 Suburban 1967-1986, K1500 1988-1990, K20 1975-1986, K20 Panel, 1967-1967, K20 Pickup 1960-1974, K20 Suburban 1967-1986, K2500 1988-1990, K30 1977-1986, K30 Pickup 1968-1974, K3500 1988-1989, K5 Blazer 1975-1986

GMC - C1500 1979-1990, C1500 Suburban 1979-1986, K2500 1979-1990, K2500 Suburban 1979-1986

Oldsmobile - 1964-1992

Pontiac - Bonneville 1977-1986, Firebird 1967-1992



Product Specifications:

Flanged Outside Diameter (in) 2.550
Flanged Outside Diameter (MM) 64.770
Helix Type Counter-Clockwise-Spiral Lip Design
Housing Bore (IN) 2.377
Housing Bore (MM) 60.380
Inside Diameter (IN) 1.500
Inside Diameter (MM) 38.100
Material Nitrile
Outside Diameter (IN) 2.381
Outside Diameter (MM) 60.480
Redicoat Yes
Sealing Material Nitrile
Shaft Diameter (IN) 1.500
Shaft Diameter (MM) 38.100
Thickness (IN) 0.470
Thickness (MM) 11.940
Type 71
Width (IN) 0.470
Width (MM) 11.940
