• Brake Drum AX8736 Rear Ford Mustang 1967-1973, Falcon 1967-1970, Ranchero 1966-1971, Torino 1969-1971, Cougar 1969-1973
  • Ford Mustang 1967 1968 1969 1970 Rear Brake Drum
1 2

Auto Extra

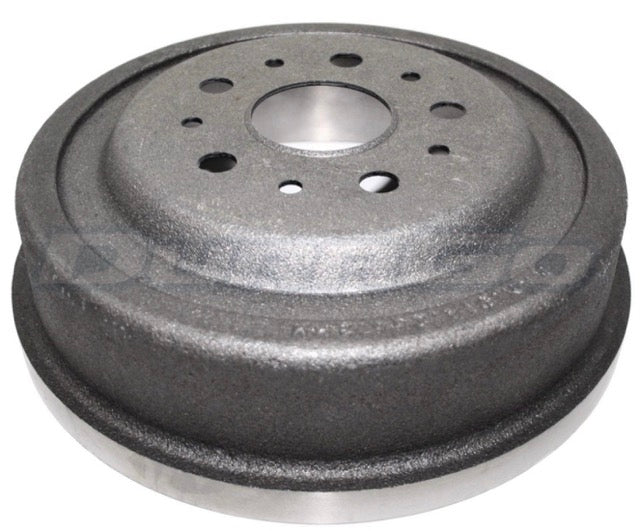

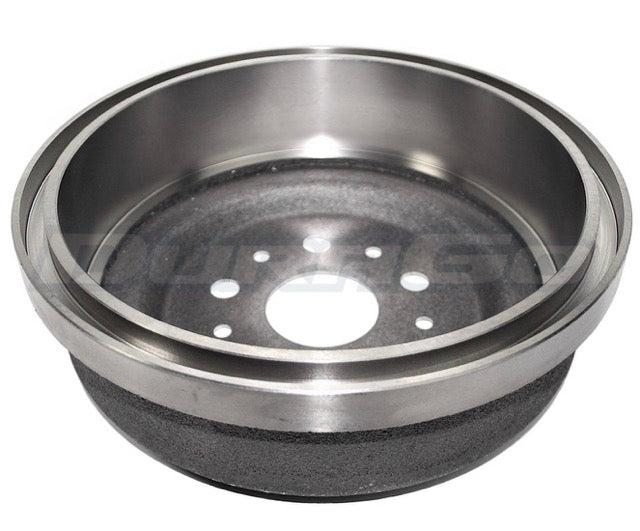

Brake Drum Rear Ford Mustang 1967-1973, Falcon 1967-1970, Ranchero 1966-1971, Torino 1969-1971, Cougar 1969-1973 AX8736

Brake Drum Rear Ford Mustang 1967-1973, Falcon 1967-1970, Ranchero 1966-1971, Torino 1969-1971, Cougar 1969-1973 AX8736

£67.50 GBP
£67.50 GBP
Sale Sold out
Tax included.
We have 4 in stock

Part Number + Internal Code

AX8736, 140136, 2637, BD60127

Specification

Colour

Material

Fitment

Condition

Manufacturer Type

Manufacturers Site (links off site):

Brake Drum - AX8736 Rear Ford Mustang 1967-1973, Falcon 1967-1970, Ranchero 1966-1971, Torino 1969-1971, Cougar 1969-1973

10 x 2" Brakes

Features & Benefits:

  • Castings engineered to exact metallurgical standards for consistent quality, strength and performance
  • Enhanced Ra braking surface finish supports brake shoe bedding
  • Premium Core Technology allows non-machined areas of the drums to be more detailed
  • Tested for balance on advanced balancing testing machines

Common Applications Include:

FORD COUNTRY SQUIRE 1969-1970
FORD FAIRLANE 1963-1970
FORD FALCON 1967-1970
FORD MUSTANG 1967-1973
FORD RANCHERO 1966-1971
FORD TORINO 1969-1971
MERCURY CALIENTE 1966-1967
MERCURY COMET 1966-1967
MERCURY COUGAR 1969-1973
MERCURY CYCLONE 1966-1971
MERCURY MONTEGO 1968-1971



Product Specifications:

Abs Tone Ring Included No
Bolt Circle Diameter (IN) 4.5
Bolt Circle Diameter (MM) 114.3
Bolt Hole Diameter (IN) 0.61
Bolt Hole Diameter (MM) 15.5
Bolt Hole Quantity 5
Brake Surface Width (IN) 2.39
Brake Surface Width (MM) 60.6
Center Hole Diameter (IN) 2.43
Center Hole Diameter (MM) 61.8
Construction Composite
Material Cast Iron / Steel Top
Maximum Brake Diameter (Discard) (IN) 10.09
Maximum Brake Diameter (Discard) (MM) 256.29
Nominal Drum Diameter (IN) 10
Nominal Drum Diameter (MM) 254
Outer Cooling Fins No
Outside Diameter (IN) 11.67
Outside Diameter (MM) 296.3
Overall Height (IN) 3.54
Overall Height (MM) 89.8
Rust Resistant Coating No
