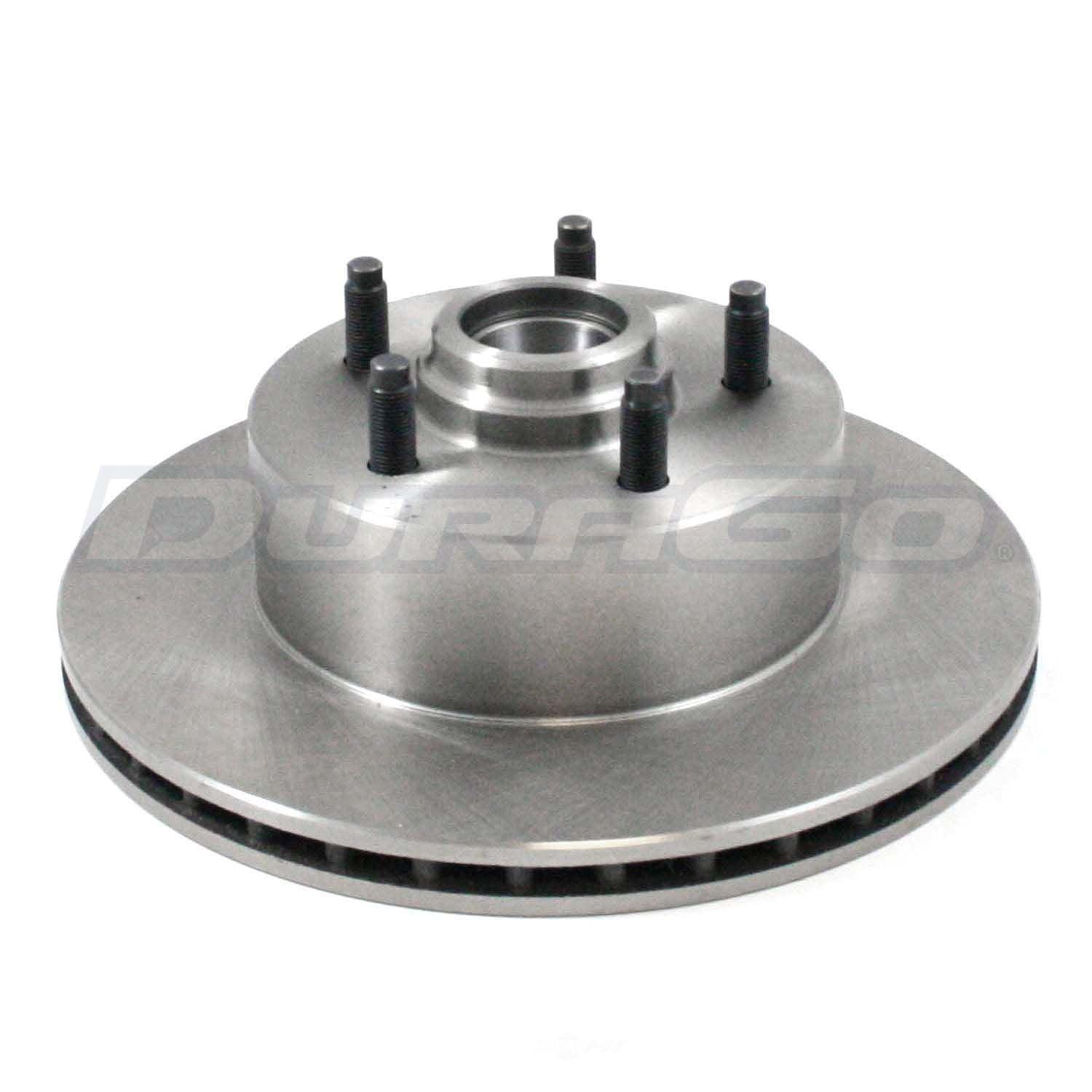

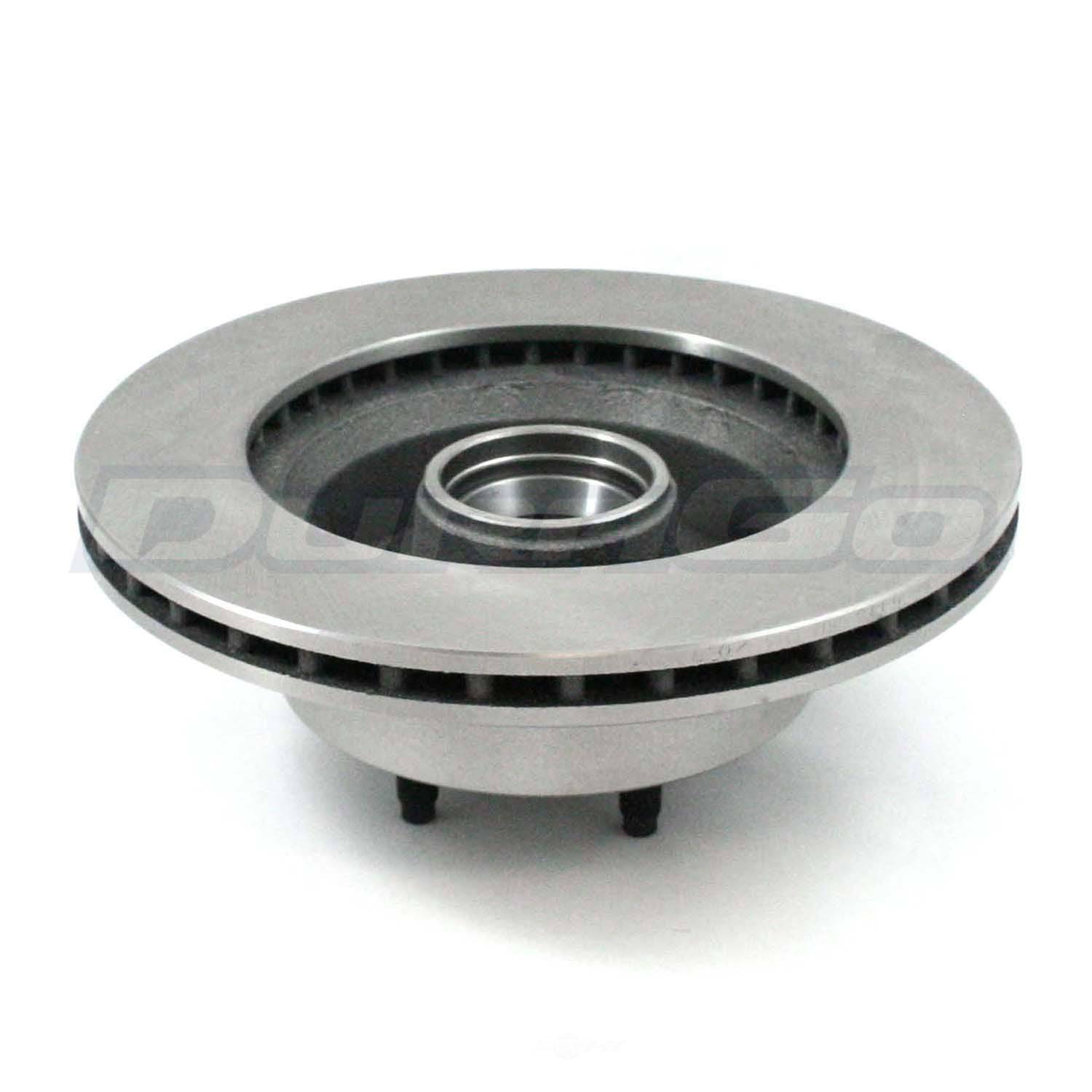

Disc Brake & Hub Assembly Jeep Cherokee 86-93, Comanche 86-92

Disc Brake & Hub Assembly Jeep Cherokee 86-93, Comanche 86-92

Front

Applications Include:

Jeep Cherokee 1986-1993, Comanche 1986-1992

• Engineered to high metallurgical standards for consistent quality, strength and performance. Precision balanced and a non-directional swirl finish eliminates the need for machining prior to installation.
• This Brake Drum and Rotor Program is the professional's choice for quality, attention to detail, cataloguing and first to market applications.
• Manufactured by ISO certified factories to meet requirements of fit, form and function.

Discard Thickness (IN)    0.81
Discard Thickness (MM)    20.7
Inner Bearing Cup Included    Yes
Mounting Bolt Hole Circle Diameter (IN)    4.5
Mounting Bolt Hole Circle Diameter (MM)    114.3
Nominal Thickness (IN)    0.85
Nominal Thickness (MM)    21.6
Outer Bearing Cup Included    Yes
Overall Height (IN)    3.97
Overall Height (MM)    100.9
Rotor Outside Diameter (IN)    11.02
Rotor Outside Diameter (MM)    279.8
Rust Resistant Coating    No
Slotted    No
Solid Or Vented Type Rotor    Vented
Stud Quantity    5
Stud Thread Size (IN)    1/2-20
Wheel Studs Included    Yes
